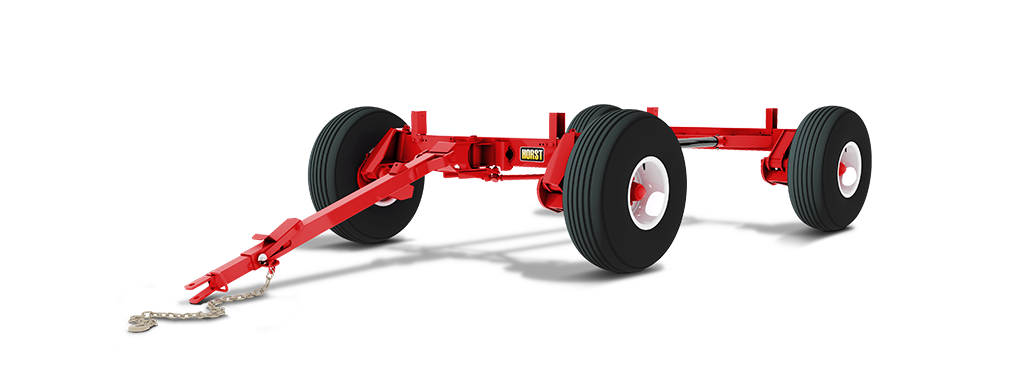

205 R F 4 Wheel Running Gear Image
Print Safe Page

Print

205RF (12 Ton)

4 Wheel Model

Road Flex Logo Improved Turning Icon
Capacity 24,000 lbs.
Spindles 2-1/4" Diameter, C1045 Cold Rolled
Hubs (max. speed rating 20 mph) 8 Bolt 6,500 lbs. each
Bearings - Bore Size (Inner/Outer) Taper Roller (1.80 / 1.38)
Front Axle 7 x 3 x .250 Wall
Rear Axle 7 x 3 x .250 Wall
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/8" Diameter
Tongue Latch Retractable Automatic Relock
Reach Poles 3" O.D. x .188 Wall - Round Tube
Bolster Stakes Adjustable 38.5" - 40.5" - 42.5"
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height From Ground To Top of Bunk 27" (12.5 x 16 Tires) 31" (11 x 22.5 Tires)
Approx. Weight 1,270 lbs. (less rims and tires)
Optional Reach Lengths: 9', 11', 12', 14', 16', 18', 20', 22'
Narrow track (Custom Build) down to 60"
Wide track (Custom Build) up to 90"
Wide track (Custom Build) over 90"
2 wheel free backing surge brakes c/w double spring balancer (includes brake tongue)
Single spring balancer
Double spring balancer
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (LBS/Tire)
12.5L x 16 14 Ply 16 x 10 x 8 82" 4,180
12.5L x 15 F Range / Hwy Ser. 15 x 10 x 8 HD 82" 4,680
14L x 16.1 8 Ply 8 Ply 16.1 x W11C x 8 82" 3,860
14L x 16.1 12 Ply 12 Ply 16.1 x W11C x 8 82" 4,680
16.5 x 16.1 10 Ply 16.1 x W14C x 8 86" 5,200
11 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 82" 8,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 82" 8,000
12 or 315 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 82" 8,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 82" 8,000
305 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 82" 8,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 82" 8,000
385 x 22.5 Used Truck 22.5 x 11.75 x 8 88" 10,000
385 x 22.5 New Recap 22.5 x 11.75 x 8 88" 10,000
425 x 22.5 Used Truck 22.5 x 11.75 x 8 88" 12,000
425 x 22.5 New Recap 22.5 x 11.75 x 8 88" 12,000
425 x 22.5 New Truck 22.5 x 11.75 x 8 88" 12,000

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
