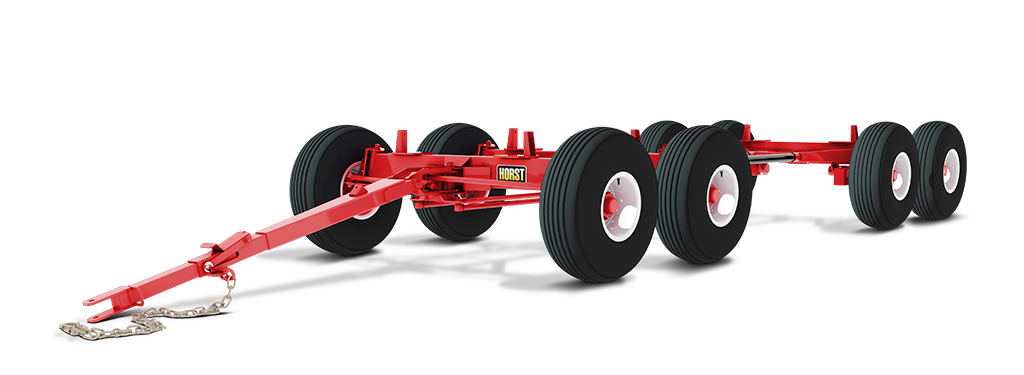

308 (20 Ton)

8 Wheel Quadsteer Model

Capacity 40,000 lbs.
Spindle 3" Dia. C1045 Cold Rolled
Hubs 8 Stud 12,000 lbs.
Bearings Taper Roller 2.165 / 1.625 (Bore Siz Inner/Outer)
Front Axle 8 x 3.5 x .250 WALL
Rear Axle 8 x 4 x .250 WALL
Tongue Bracket Mounting 1-1/2" Bolt Bearings
Tongue Bolt 1-1/8" dia.
Tongue Latch Retractable Automatic Relock
Reach Poles 3" O.D. x .188 Wall Round Tube
Bolster Stakes 42.5" Fixed
Steering Automative Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height 30" on 11 x 22.5 Tires (From Ground to Top of Bunk)
Approx. Weight 2,115 lbs. (less rims and tires)
Optional Reach Lengths 9', 11', 12', 14', 16', 18', 20', 22'
Disc Brakes 4 wheel HD hydraulic disc brakes (remote)
Disc Brakes 2 wheel HD hydraulic disc brakes (remote)
Safety Chain 1/2" Gr. 70
Spring Balancer for Tongue Spring adjustable bolt and two brackets
Double Spring Balancer
Electric Brake Actuator for Hydraulic Brakes
4" Bolt On Riser Kit Other heights available.
Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
14L x 16.1 8 Ply 16.1 x W11C x 8 89" 3,860
14L x 16.1 12 Ply 16.1 x W11C x 8 89" 4,680
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 5,200
19L x 16.1 10 Ply 16.1 x W16C x 8 95" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 95" 7,850
11 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
385 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 10,000
385 x 22.5 New Recap 22.5 x 11.75 x 8 87" 10,000
425 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 New Recap 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 New Truck 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 Used Truck* 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445 x 22.5 Used Truck* 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
