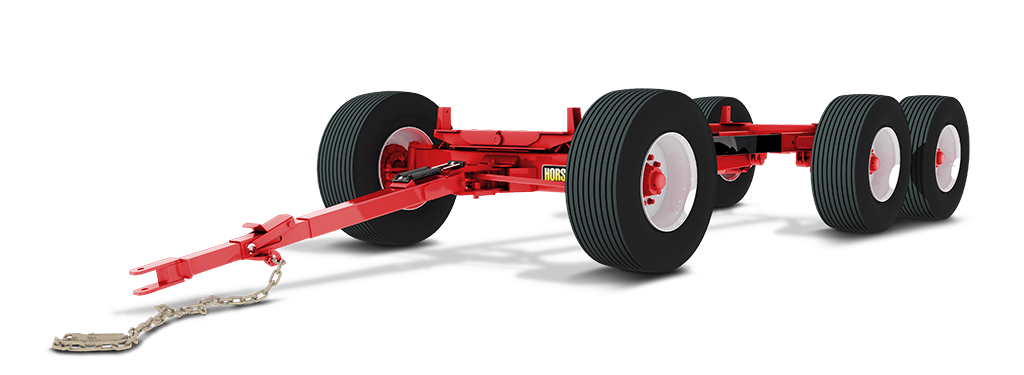

605 (30 Ton)

6 Wheel Model

30 ton HD tandem wagon gear
Quick hitch tongue
Rocking Bolster
Standard reach length 10'
Wheel base adjustable 10' 7" - 12' 1"
Hubs - 10 Stud 16,000 LBS.each
Disc brake flanges
Safety chain (5/8" GR. 70)

Capacity	60,000 lbs.
Spindles	4" Dia. C1045 Cold Rolled
Hubs (max. speed rating 20 mph)	10 Stud 16,000 lbs. each
Front Axle	10 x 4 x .500 Wall
Rear Axle	10 x 4 x .500 Wall
Tongue Bracket Mounting	1-1/2" Bolt Bearing Mtd.
Tongue Bolt	1-1/2" Dia.
Reach Tubes	6 x 4 x .188 Tubes
Bolster Stakes	42.5" Fixed
Steering	Automotive Type
Tie Rod Ends	Greasable Automotive Style Ball Joints
Wheel Base	Adjustable
Height from Ground to Top of Bunk	34" on 18 x 22.5 Tires
Approx. Weight	3,295 lbs. (less rims and tires)

Optional Reach Lengths: 8', 10', 12', 14', 16', 18', 20'

Narrow track (Custom Build) down to 60"

4 Wheel HD hydraulic disc brakes (remote)**

2 Wheel HD hydraulic disc brakes (remote)**

Double spring balancer

4" bolt on riser kit (other heights available)

**Hydraulic brake system also works on a brake pedal outlet kit.

Tire Size	Tire Type	Rim Size	Track Width	Capacity (LBS/Tire)
425 x 22.5	Used Truck	22.5 x 13 x 10	86"	12,000
425 x 22.5	New Recap	22.5 x 13 x 10	86"	12,000
425 x 22.5	New Truck	22.5 x 13 x 10	86"	12,000
445 x 22.5	Used Truck	22.5 x 13 x 10	86"	12,000
445/50 x 22.5	New Recap	22.5 x 13 x 10	86"	12,000
445 x 22.5	New Truck	22.5 x 13 x 10	86"	12,000
400 / 55 x 22.5	16 Ply	22.5 x 13 x 10	86"	7,820
560 / 45 x 22.5	16 Ply	22.5 x 16 x 10	92"	9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
