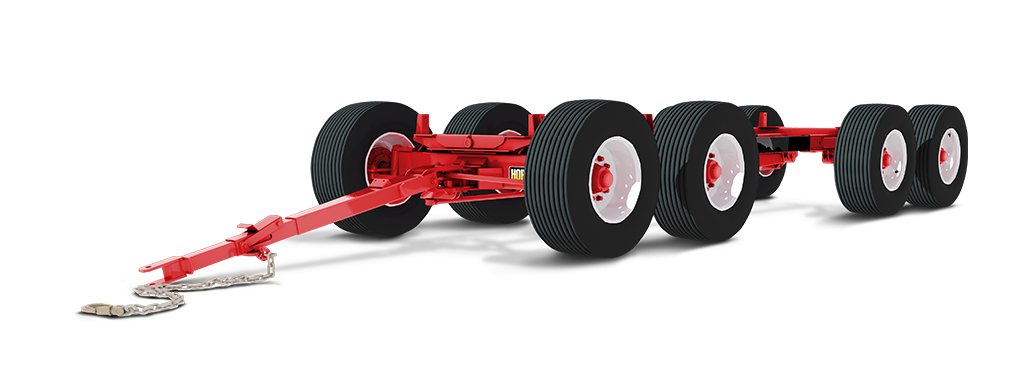

608 8 Wheel Quadsteer Running Gear Image
Print Safe Page

Print

608 (40 Ton)

8 Wheel Quadsteer Model

Capacity 80,000 lbs.
Spindle 4" Dia. C1045 Cold Rolled
Hubs 10 Stud 16,000 lbs.
Bearings - Bore Size (Inner/Outer) Taper Roller 2.165 / 1.625
Front Axle 10 x 4 x .500 WALL
Rear Axle 10 x 4 x .500 WALL
Tongue Bracket Mounting 1-1/2" Bolt Bearings Mtd.
Tongue Bolt 1-1/2" quot; dia.
Tongue Latch Retractable Automatic Relock
Reach Poles 6 x 4 x .188 Tubes
Bolster Stakes 42.5" Fixed
Steering Automative Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height 24" on 18 x 22.5 Tires (From Ground to Top of Bunk)
Approx. Weight 2,985 lbs. (less rims and tires)
Optional Reach Lengths: 8', 10', 12', 14', 16', 18', 20'
Add or subtract price per foot for over or under 10' (includes both reach poles)
4 Wheel HD hydraulic disc brakes (remote)**
2 Wheel HD hydraulic disc brakes (remote)**
Electric brake actuator for hydraulic brakes
Safety chain (1/2" GR. 70)
Double spring balancer
4" bolt on riser kit (other heights available)

**Hydraulic brake system also works on a brake pedal outlet kit.

Tire Size Tire Type Rim Size Track Width Capacity (LBS/Tire)
425 x 22.5 Used Truck 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
445 x 22.5 Used Truck 22.5 x 13 x 10 86" 12,000
445/50 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 10 86" 7,820
550 / 45 x 22.5 16 Ply 22.5 x 16 x 10 92" 9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
