Horst Wagons

CHCFRF30

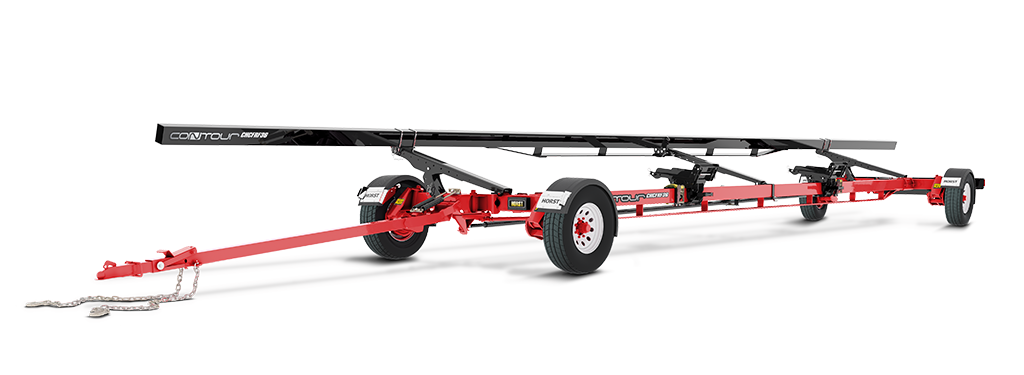

C H C F R F 30 Contour Cross Country Header Wagon
Print Safe Page

Print

CHCFRF30

Contour Cross Country (4 Wheel Steer)

† Licensing requirements may vary - Check local requirements

Maximum Rated Gross Capacity 14,000 lbs.
Wheelbase 18'
Tongue Length (Adjustable) 11' 9" to 14' 9"
Top Rail Length 31'
Bridged Top Rail Standard
Maximum Head Size 30'
Safety Chain Standard
Road Signal Light Kit Standard
Fenders Standard
Shoes & Pads 2 Shoes + 2 Pads Included
Approx. Weight 3,395 lbs. (less rims and tires)

Maximum Rated Gross Capacity changes depending on tire option

CHCRB18HD Heavy Duty Bottom Rail Option - is designed for headers that require extra support along the mid section. (in lieu of standard rail at time of manufacture) 18' wheelbase
HBAFK Honey Bee AirFLEX® Pad Adapter Kit
CHCTRMX2 Extends top rail horizontal adjustment up to 10" (incl. 2 extensions and 4 pins)
Tire Size Description GVWR Rim Size
235/85 R16 F Range highway trailer tire 14,000 lbs. 16 x 6 x 8

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
