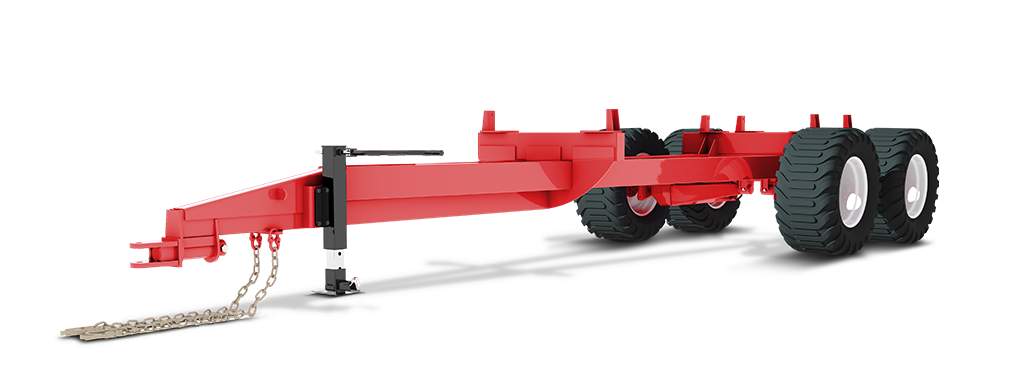

TR505 (20 Ton)

Trailer Chassis

Capacity (30 kph / 20 mph) 40,000 lb
Capacity (50 kph / 30 mph) 36,000 lb
Spindles 3" Dia. 1144 Stress Proof
Hubs 8 Stud
Tandem Axle 10 x 4 x .375 Wall
Bolster Stakes 42.5" Fixed
Height From Ground to Top of Bunk 32" on 445/65 x 22.5 Tires
Approx. Weight 2,700 lbs. (less rims and tires)
Boslter Measurement Reference
Bolster Measurement Length (in.)
Bolster Measurement A 137"
Bolster Measurement B 156"
Bolster Measurement C 128"
Bolster Measurement D 28"
4 Wheel HD hydraulic disc brakes incl. flat face brake line coupler, must use 22.5 rim
2 Wheel HD hydraulic disc brakes incl. flat face brake line coupler, must use 22.5 rim
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (lbs./Tire)
16.5 x 16.1 10 Ply 16.1 x W14C x 8 79" 5,200
19L x 16.1 12 Ply 16.1 x W16C x 8 87" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 87" 7,850
425 x 22.5 Used Truck 22.5 x 13 x 8 76" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 76" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 76" 12,000
445 x 22.5 Used Truck 22.5 x 13 x 8 76" 12,000
445/50 x 22.5 New Recap 22.5 x 13 x 8 76" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 76" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 8 76" 7,820
560 / 45 x 22.5 16 Ply 22.5 x 16 x 8 82" 9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
