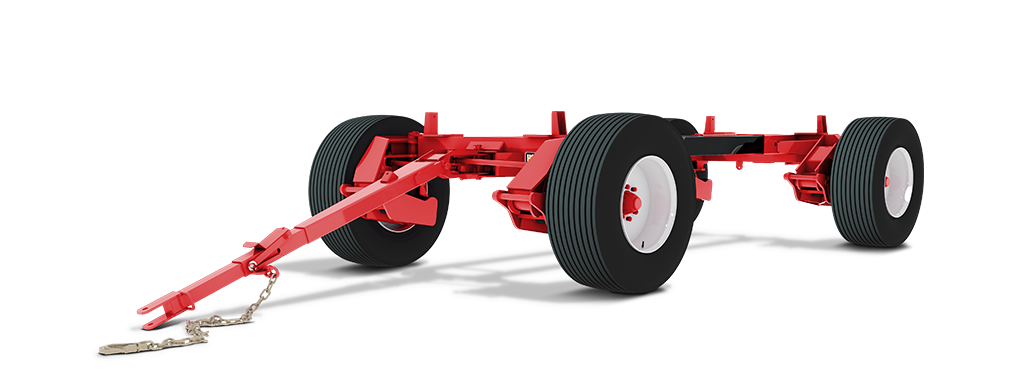

285 R F 4 Wheel Running Gear
Print Safe Page

Print

285RF (15 Ton)

4 Wheel Model

Road Flex Logo
Capacity (30 kph / 20 mph) 30,000 lb
Capacity (50 kph / 30 mph) 24,000 lb
Spindles 2.75" Dia. C1045 Cold Rolled
Hubs (max. speed rating 20 mph) 8 Stud 8,000 lbs. each
Hubs (max. speed rating 30 mph) 8 Stud 6,000 lbs. each
Front Axle 8 x 4 x .250 WALL
Rear Axle 8 x 4 x .188 WALL
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/8" Dia.
Bolster Flexible Front
Reach Tubes 6 x 4 x .188 Tubes
Bolster Stakes 42.5" Fixed
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height from Ground to Top of Bunk 39" on 445/65 x 22.5 Tires
Approx. Weight 3,085 lbs. (less rims and tires)
-->
Optional Reach Lengths: 8', 10', 12', 14', 16', 18', 20'
Narrow track (Custom Build) down to 60" (stake posts may ship loose)
Wide Track (Custom Build) up to 90"
Wide Track (Custom Build) over 90"
2 Wheel HD hydraulic disc brakes incl. flat face brake line coupler, must use 22.5 rim
4 Wheel HD hydraulic disc brakes incl. flat face brake line coupler, must use 22.5 rim
Single spring balancer
Double spring balancer
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (lbs./Tire)
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 5,200
19L x 16.1 12 Ply 16.1 x W16C x 8 95" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 95" 7,850
11 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 89" 8,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 Used Truck 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
385 x 22.5 Used Truck 22.5 x 11.75 x 8 89" 10,000
385 x 22.5 New Truck 22.5 x 11.75 x 8 89" 10,000
425 x 22.5 Used Truck 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445/50 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 8 86" 7,820
560 / 45 x 22.5 16 Ply 22.5 x 16 x 8 92" 9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
