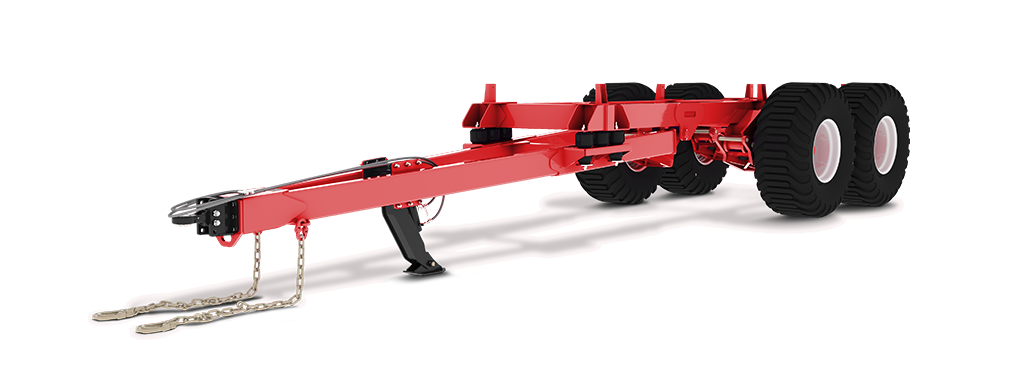

T R 605 Road Flex Trailer Chassis Image
Print Safe Page

Print

TR605RF (24 Ton)

Trailer Chassis

Road Flex Logo
Capacity (30 kph / 20 mph) 48,000 lb
Capacity (50 kph / 30 mph) 48,000 lb
Spindles 4" Dia. C1045 Cold Rolled
Hubs 10 Stud
Tandem Axle 10 x 4 x .500 Wall
Bolster Stakes 42.5" Fixed
Height from Ground to Top of Bunk 40" on 445/65 x 22.5 Tires
Approx. Weight 5,885 lbs. (less rims and tires)
Bolster Measurement Length (in.)
Bolster Measurement A 140"
Bolster Measurement B 182"
Bolster Measurement C 107"
Bolster Measurement D 75"
4 Wheel HD hydraulic disc brakes (remote)**
2 Wheel HD hydraulic disc brakes (remote)**
4" bolt on riser kit (other heights available)

**Hydraulic brake system also works on a brake pedal outlet kit.

Tire Size Tire Type Rim Size Track Width Capacity (LBS/Tire)
425 x 22.5 Used Truck 22.5 x 13 x 10 76" 12,000
425 x 22.5 New Recap 22.5 x 13 x 10 76" 12,000
425 x 22.5 New Truck 22.5 x 13 x 10 76" 12,000
445 x 22.5 Used Truck 22.5 x 13 x 10 76" 12,000
445/50 x 22.5 New Recap 22.5 x 13 x 10 76" 12,000
445 x 22.5 New Truck 22.5 x 13 x 10 76" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 10 76" 7,820
560 / 45 x 22.5 16 Ply 22.5 x 16 x 10 82" 9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
