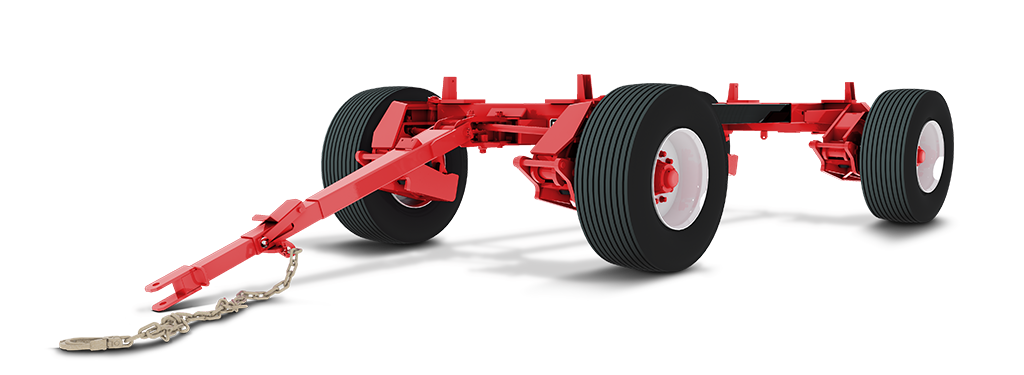

485RF (24 Ton)

4 Wheel Model

Road Flex Logo
Capacity (30 kph / 20 mph) 48,000 lb
Capacity (50 kph / 30 mph) 48,000 lb
Spindles 4" Diameter, C1045 Cold Rolled
Hubs 10 Stud
Front Axle 10 x 4 x .500 WALL
Rear Axle 10 x 4 x .375 WALL
Tongue Bracket Mounting 1-1/2" Bolt Bearing Mtd.
Tongue Bolt 1-1/2" Dia.
Bolster Flexible Front
Reach Tubes 6 x 4 x .188 Tubes
Bolster Stakes 42.5" Fixed
Steering Automotive Type
Tie Rod Ends Greasable Automotive Style Ball Joints
Wheel Base Adjustable
Height from Ground to Top of Bunk 40" on 445/65 x 22.5 Tires
Approx. Weight 4,370 lbs. (less rims and tires)
Optional Reach Lengths: 8', 10', 12', 14', 16', 18', 20'
Narrow track (Custom Build) down to 60" (stake posts may ship loose)
Wide Track (Custom Build) up to 90"
Wide Track (Custom Build) over 90"
2 Wheel HD hydraulic disc brakes incl. flat face brake line coupler, must use 22.5 rim
4 Wheel HD hydraulic disc brakes incl. flat face brake line coupler, must use 22.5 rim
Double spring balancer
4" bolt on riser kit (other heights available)
Tire Size Tire Type Rim Size Track Width Capacity (lbs./Tire)
425 x 22.5 Used Truck 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
445 x 22.5 Used Truck 22.5 x 13 x 10 86" 12,000
445/50 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 10 86" 7,820
560 / 45 x 22.5 16 Ply 22.5 x 16 x 10 92" 9,640

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
