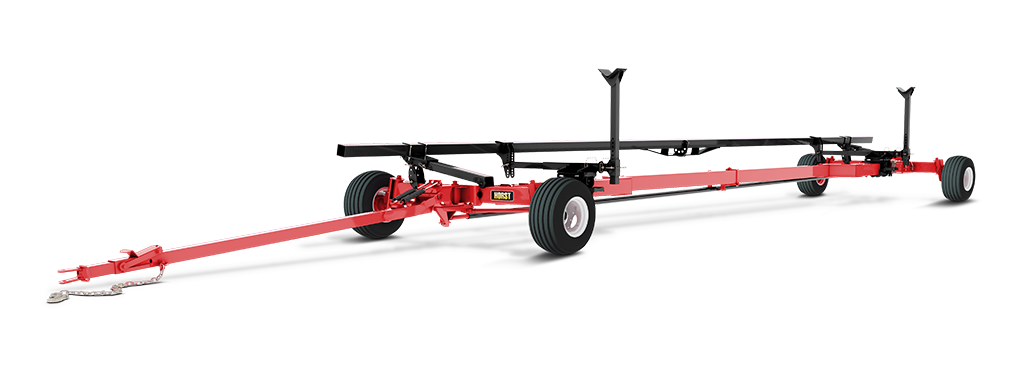

SHCF36

Print

SHCF36

Accepts Agco, Challenger, Hesston, MacDon and Massey Ferguson brands only

Notched rail for easy header placement
Tapered roller bearings on king pins for absolute no sway trailing
Includes 2 tool free configurable swather universal mount brackets with pivoting head supports (fold out of the way during loading and unloading)
2 Ratchet straps to secure load
4 Wheel steering
Adjustable top rail
Safety chain
Double spring balancer
Length adjustable hitch with auto lock for simple hook up
20.5 x 8-10 (F Range) tire on 10 x 6 x 6 rim

Maximum Rated Gross Capacity	6,600 lbs.
Wheelbase	30'
Tongue Length (Adjustable)	11' 4" to 14' 4"
Top Rail Length	36'
Bridged Top Rail	Standard
Maximum Head Size	35'
Safety Chain	Standard
Approx. Weight	2,675 lbs. (less rims and tires)

LK30	Road Signal Light Kit (30' wheelbase)

Tire Size	Description	GVWR	Rim Size
20.5 x 8-10	Load Range F	6,600 lbs.	10 x 6 x 6

Capacities listed are max tire capacity. See wagon specifications for maximum wagon capacity.
